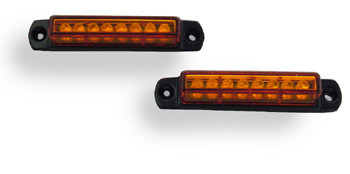

These Universal Light Bars are useful for a variety of different applications including: Motorcycles, ATVs, Trailers, Campers, Trucks, Cars, Scooters, etc. Since it was designed for all weather operation, the ULB (Universal Light Bar) should surpass all or your expectations and has been manufactured to outlive any application it is installed on. By sealing the electronic components, we have given the ULB the capability to be a water resistant auxiliary light allowing endless possibilities for even the most extreme weather conditions and applications.
Installation and Wiring
To mount, place your LED ULB light bar in the area you would like it to be permanately mounted. Once you're sure of the placement, drill 2 (#6) mounting holes and one wire hole with care and then feed the wires through the center hole and attach the ULB with the included mounting screws, washers, and bolts. To wire the ULB tap the black wire to a ground source. Locate your brake light wire and tap the red wire from the ULB to the brake light wire. Finally tap the white wire onto your running light wire. Be sure that the ULB is secure and all of your connections are secure, now you can power up your ignition and check the functionality!
Black Wire: Ground
Red Wire: Brake Light
White Wire: Running Light
Part Number: 02242
Number of Products: 2 ULB's per Package (One Pair)
Weight: Less than 1lb
System Requirement: 12VDC
Attachment Method: (2) 1" Black Stainless Steel Screws, Washers, Lock Nuts
Height (in): 3/4"
Length (in): 3 1/4"
Width (in): 3/4"
Distance between mounting holes (in): 2 4/5"
Wire Length: 22"-24"
Power Draw: 15mA on low intensity and 120mA on high intensity
LED Color: Amber
Lens Color: Amber
Material: Finished Zinc
Package Contents: (2) 1" Black Stainless Steel Screws, Washers, Lock Nuts
Color / Finish: Gloss Black Powder Coating
Hardware Included: Yes
Connectors Included: No
Tools Required: Wire Cutters, Crimp Connectors; Optional Test Light, Soldering Iron
Water Resistant: Yes
Heat and Vibration Resistant: Yes
Companion Product(s): n/a
