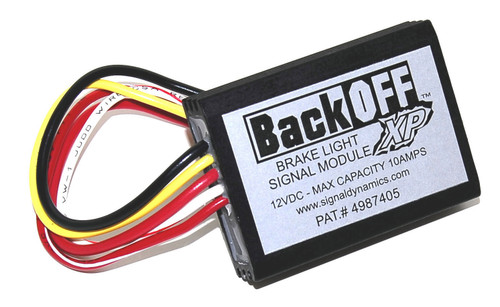

BackOFF™ XP Brake Light Module

$47.95
SKU:
01004
Rating:
5 Stars
Quantity:

Product Description


The BackOFF™ XP Brake Light Module automatically flashes your brake light(s) to capture the attention of following drivers and to make your motorcycle more visible. When installed, the motorcycle's brake light becomes significantly more noticeable because your brake light(s) will flash with your choice of 2 attention getting patterns. This module is designed to work with standard incandescent brake lights, LED brake lights, or a combination of both (up to 10 amps).

Flash patterns to choose from
Mode 1: Causes your brake light(s) to automatically emit a visual alerting signal of 5 short flashes, followed by 1 steady on light for 4 seconds. This sequence automatically repeats itself as long as the brakes are applied.

Mode 2: Causes your brake light(s) to emit 5 rapid flashes, then remain steady on light as long as you are stopped/braking.

Note: Both Mode 1 and 2 can be used if you have multiple brake lights.

These flash patterns are not random, but have been selected because of their ability to gain and retain following driver's attention. Most states drivers handbooks recommend that you flash your brakes when slowing or stopping. The BackOFF™ XP automatically facilitates compliance and enhances safety. Install the BackOFF™ XP and see how much more effective your brake light can be!

Installation
To install, wire the BackOFF™ XP Brake Light Module in-line with your existing brake light wire. Locate your brake light wire and cut the wire into 2 (use a test light or multi-meter to find proper wire). Choose the mode you would like from the 2 available and connect the mode wire (red/white or white/red) to the wire leading to the rear of your bike, and connect the red wire from the module to the cut brake light wire leading toward the front of the bike. Tap the black wire from the module to a ground wire and read instructions below for the optional yellow wire. Finally peel the paper lining off of the double sided adhesive pad and mount the module to a clean, flat surface. (Be sure to cap off the unused mode wire)

Wiring
Solder connections or use crimp connectors (not included)

Black wire: Ground
Red wire: Connect to brake light wire - leading forward (front of bike)


CHOOSE 1 MODE BELOW (CAP OFF UNUSED WIRE) Connect to brake light wire - leading back to the brake light (rear of bike)
Mode 1: White wire / Red stripe

Mode 2: Red wire / White stripe

(OPTIONAL)
Yellow wire: Motorcycle hazard flasher / Automotive flasher
Motorcycle: Connect to on/off fused switch and your battery for continuous hazard flashers when switch is on

Automobile: Tap wire to vehicles reverse light wire, causing center brake light to flash when in reverse

Specifications
Part Number: 01004
Weight: Less than 1lb
Current Limit: 10 Amp Max per Output (up to 3 Standard Incandescent Bulbs/output)
System Requirement: 12VDC(-)
Attachment Method: Included Double Sided Adhesive Pad
Height (in): 5/8"
Length (in): 2 1/4"
Width (in): 1 5/8"
Wire Length: 5"-6"
Material: Anodized Aluminum Case with Heat and Water Resistant Potting
Wire: 16AWG - 20AWG
Package Contents: (1) BackOFF™ XP Brake Light Module, (1) Adhesive Mounting Pad
Color / Finish: Black Anodized
Hardware Included: No
Connectors Included: No
Tools Required: Wire Cutters/Splices
Waterproof: No
Water Resistant: Yes
Heat and Vibration Resistant: Yes
Companion Product(s): n/a

1004

Product Videos

Signal Dynamics Backoff XP on 06' Yamaha Warrior (00:23)
Installed this brakelight modulator with a friend to make the bike more visible when braking. Install was relatively simple and is documented @ http://rswarrior.com/forums/t/128067.aspx
  • Signal Dynamics Backoff XP on 06' Yamaha Warrior
    Installed this brakelight modulator with a friend to make the ...
  • 2008 Honda CRF 230L Back Off XP Tail light flasher
    I bought this for my KLR650 but then saw how great the LED cir...
  • SDC Back-Off XP Brake Light Signal Module Installation On Royal Enfield Bullet Motorcycle
    The Signal Dynamics Back-Off XP Brake Light Signal Module make...
  • BackOFF-XP
    This shows two cycles of the BackOFF-XP that I just installed ...
  • Signal Dynamics Back Off XP Brake Light Modulator
    This is a brake light modulator that flashes all 4 of my brake...
  • Signal Dynamics: Back Off XP Brake Light Modulator
    For more information about the Signal Dynamics Back Off XP Bra...
